Introduction
Chipping remains one of the most frustrating problems in stone fabrication, costing shops time, material, and client trust. Fabricators often blame the blade, but the issue usually starts earlier, in the programming. Reducing chipping on ultra-compact surfaces takes the right approach from the first pass.
As ultra-compact surface fabrication grows, shops need a programming approach built for dense, brittle materials. This Moksh CAD guide covers the causes, the programming fixes, and the tooling and machine settings that stop it.
Why Ultra-Compact Surfaces Chip More Easily
Ultra-compact materials like sintered stone and porcelain are engineered for hardness, but that comes with a tradeoff. They resist scratching and stay vulnerable to sudden stress. Brittleness, not just hardness, determines how the material reacts to vibration during cutting.
Most edge failures happen when cutting force builds faster than the material can absorb it, especially near outside corners and sink cutouts. Dekton chipping prevention and porcelain slab chipping solutions both start with understanding these mechanical limits before programming the first pass.

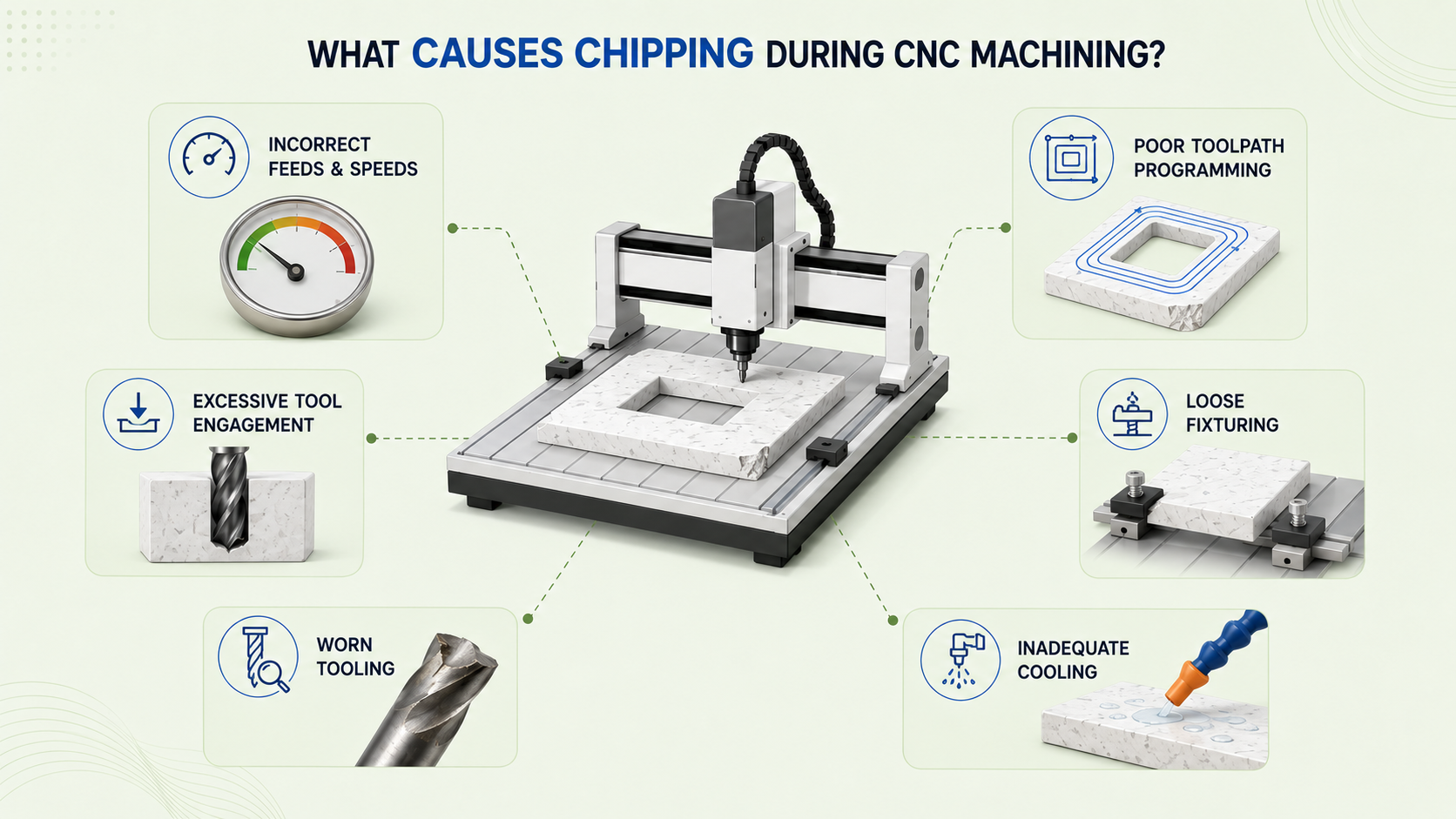

What Causes Chipping During CNC Machining?
Several factors cause chipping during CNC machining, and most of them can be addressed through better programming and setup.
- Incorrect Feeds and Speeds: Running the tool too fast or too aggressively prevents clean shearing and increases edge stress.
- Poor Toolpath Programming: Sudden direction changes can shock the cutting edge, especially around corners and tight transitions.
- Excessive Tool Engagement: Deeper or heavier tool engagement increases cutting pressure and makes corners more vulnerable to chipping.
- Loose Fixturing: Vibration or movement during machining transfers instability into the cut, affecting edge quality.
- Worn Tooling: Dull or worn tools tend to tear the material instead of producing a clean cut.
- Inadequate Cooling: Insufficient cooling can increase heat buildup and weaken the material before the tool completes the pass.
- G-Code Optimization: Strong CNC programming for stone fabrication, including G-code optimization stone cutting, helps control these variables before production begins.

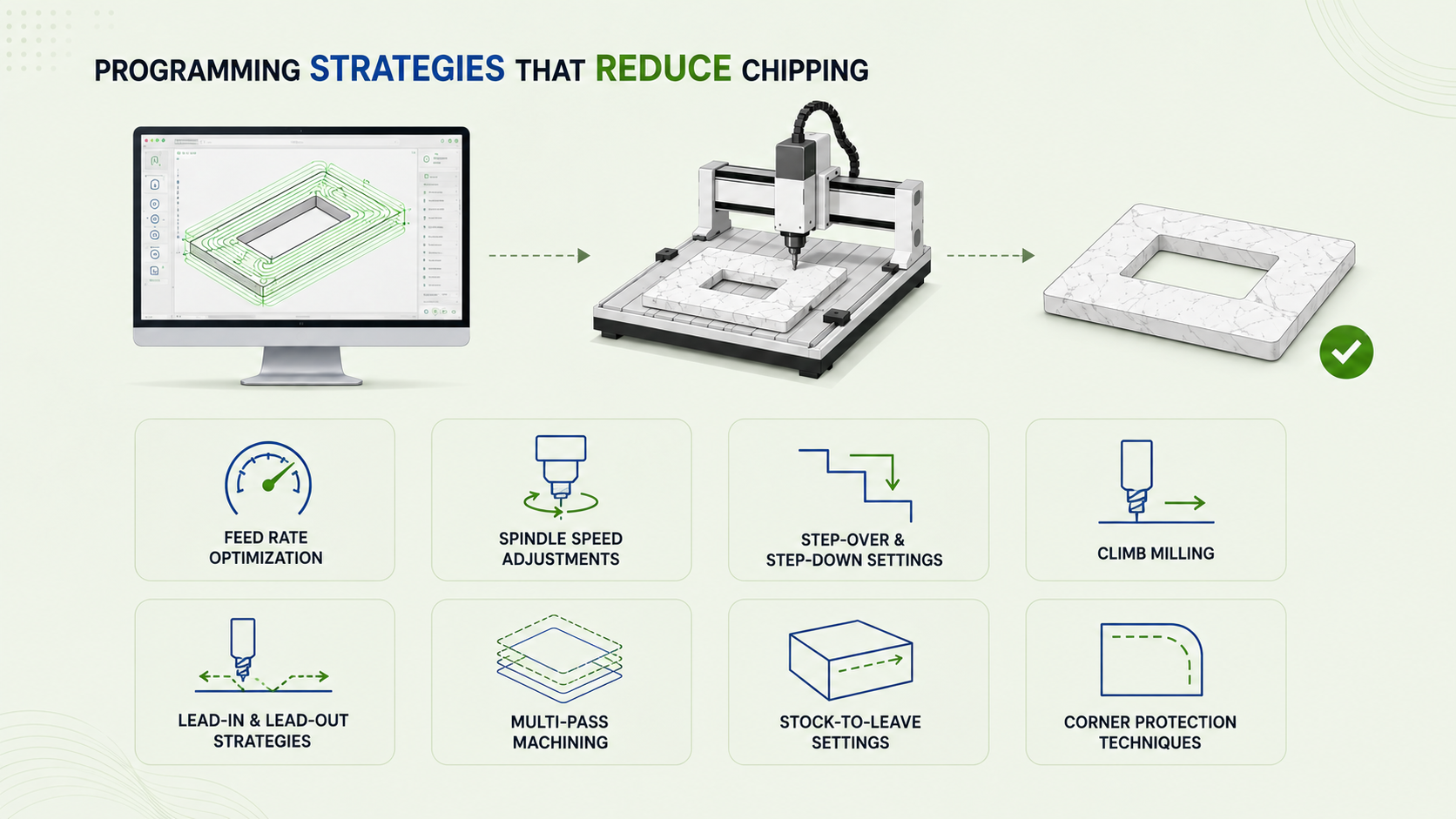

Programming Strategies That Reduce Chipping
The most reliable way to prevent chipping is to correct the programming before the cut begins.
- Feed rate optimization for CNC stone: slow the tool through high-risk zones without hurting cycle time.
- Spindle speed adjustments: match rotational force to material density.
- Step-over and step-down settings: control how much material each pass removes.
- Climb vs. conventional milling: climb milling produces cleaner edges on most ultra-compact materials.
- Lead-in and lead-out strategies: keep the tool from entering or exiting the material abruptly.
- Multi-pass machining: spread cutting force across several lighter passes.
- Stock-to-leave settings: preserve a thin finishing layer that protects the edge until the final pass.
- Corner protection techniques: slow the toolpath near vulnerable outside corners, where chipping most often starts.
Together, these form the foundation of chip-free cutting techniques and reflect proven stone fabrication programming best practices.

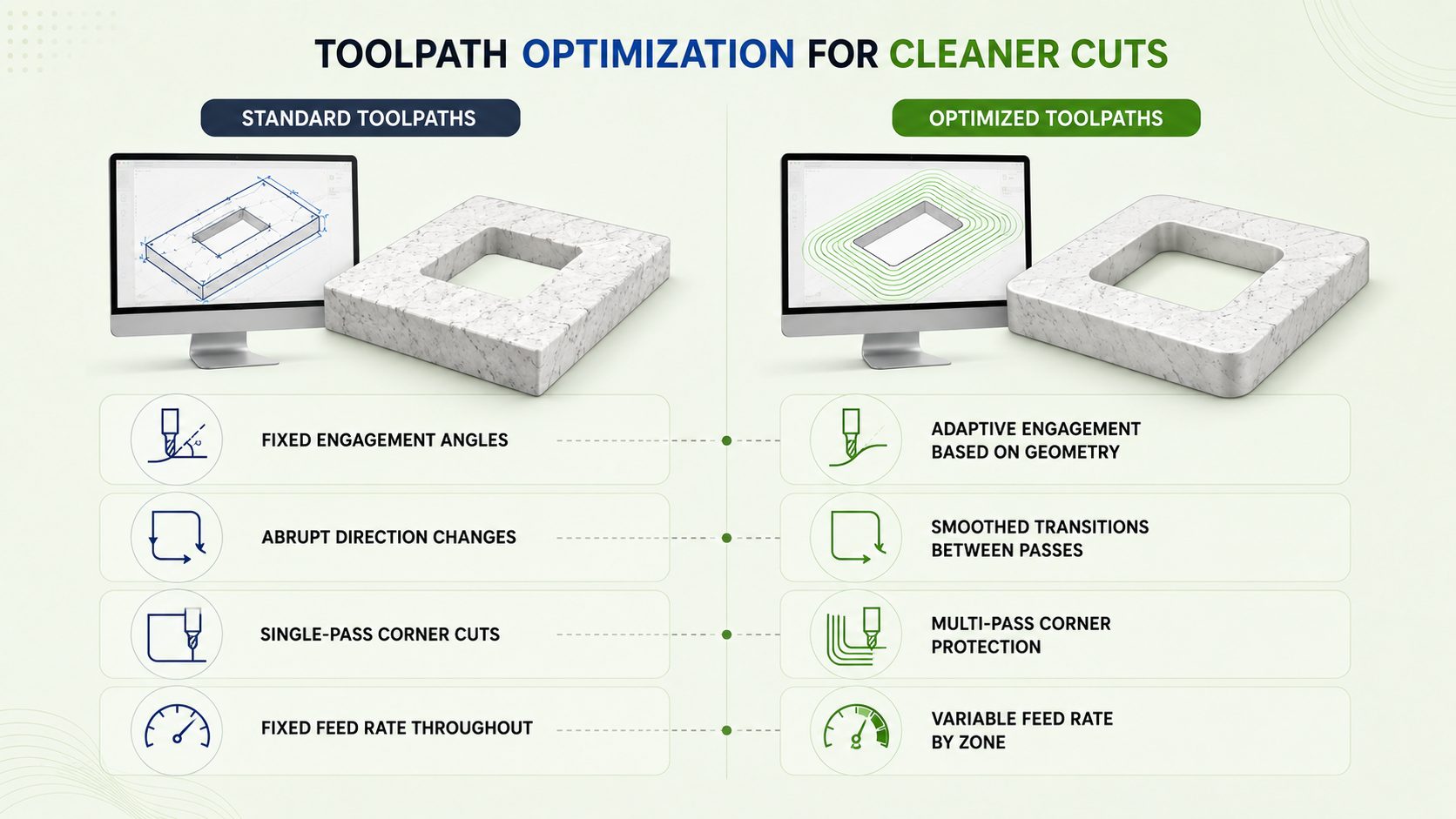

Toolpath Optimization for Cleaner Cuts
Toolpath quality affects edge finish as much as cutting parameters. CNC toolpath programming for stone should prioritize smooth, predictable motion over speed.
Adaptive toolpaths adjust engagement as geometry changes, and constant tool engagement avoids the load spikes standard toolpaths create. Toolpath smoothing and tighter tolerance settings keep the tool locked to the intended path, while machine motion optimization reduces acceleration spikes during the cut.
The table below compares standard and optimized toolpaths for precision CNC cutting on stone surfaces.
| Standard Toolpaths | Optimized Toolpaths |
|---|---|
| Fixed engagement angles | Adaptive engagement based on geometry |
| Abrupt direction changes | Smoothed transitions between passes |
| Single-pass corner cuts | Multi-pass corner protection |
| Fixed feed rate throughout | Variable feed rate by zone |
These small adjustments in toolpath logic add up to noticeably cleaner edges across a full production run.
Choosing the Right Tooling for Ultra-Compact Surfaces
Programming controls how the tool moves, but the tool still has to match the material. Blade selection for ultra-compact material should be decided before scheduling, not during it.
- Diamond blades: with the correct bond hardness cut cleanly through dense surfaces without excessive heat
- CNC router bits: designed for stone hold their geometry longer under load
- Finger bits: reduce edge stress during sink cutouts
- Core bits: keep drilled edges clean
- Tool maintenance: routine checks, plus verifying slab dimensions through Proliner digitizing accuracy, keep every program accurate
Best Machine Settings for Different Fabrication Operations
Different operations need different programming priorities, and CNC router settings for porcelain should shift with the cut, cutout, or finishing pass.
| Operation | Key Programming Focus |
|---|---|
| Straight cuts | Feed and spindle optimization |
| Sink cutouts | Entry strategy and corner relief |
| Drilling | Peck cycles and coolant |
| Miter cuts | Multiple finishing passes |
| Edge profiling | Toolpath smoothing |
Matching the programming focus to the operation keeps every cut, cutout, and finish consistent.
Fabrication Best Practices Beyond Programming
Programming is only one part of reducing chipping. Shop practices also shape how clean and consistent the edges stay.
- Solid Material Support: Properly supporting the slab prevents flexing and movement during cutting.
- Vacuum Table Setup: A secure vacuum setup keeps the slab firmly seated and reduces vibration around the cutting zone.
- Careful Slab Handling: Proper handling helps prevent stress cracks that may later appear as chipped or damaged edges.
- Cooling Management: Consistent cooling helps control temperature and reduces heat-related material stress during machining.
- Dust Extraction: Effective dust removal keeps debris away from the cutting path and supports cleaner machining.
- Routine Machine Maintenance: Regular maintenance helps preserve machine accuracy and cutting consistency over time.
- Slab Nesting: Efficient slab nesting for ultra-compact surfaces reduces unnecessary offcuts and supports reducing waste in slab fabrication.
Common Programming Mistakes That Cause Chipping
Even experienced shops repeat a few programming mistakes that lead directly to chipped edges.
- Aggressive feeds: prioritize speed over the material’s actual tolerance
- Incorrect tolerance values: let the tool drift off path and stress the edge
- Skipping finishing passes: leaves rough material that chips under light pressure
- Using worn tools: tears the surface instead of cutting cleanly
- Ignoring machine acceleration settings: creates sudden force changes mid-cut
- Applying granite settings to ultra-compact materials: remains a common, costly error
Avoiding these mistakes is central to solid fabrication shop CNC programming tips for 2026.
How Moksh CAD Helps Fabricators Achieve Cleaner Cuts
Moksh CAD supports fabrication shops with precision tooling and CNC solutions built for ultra-compact surfaces and demanding schedules. Our team guides decisions on feeds, speeds, and tooling so each job runs right the first time.
Conclusion
Chipping on ultra-compact surfaces rarely comes down to one factor. Feed rates, toolpaths, tool selection, and machine setup all shape the edge, and reducing chipping on ultra-compact surfaces means treating these as one connected system. Programming sets the foundation, and the right tooling and machine settings carry it through the cut.
Moksh CAD helps fabrication shops bring those pieces together with precision tooling, CNC solutions, and hands-on guidance that fine-tunes your programming and protects every edge you cut.
Book a Discovery Call with Moksh CAD.
Frequently Asked Questions
1. Do I need new machines to cut ultra-compact materials without chipping?
In most cases, no. Chipping is usually caused by incorrect programming rather than machine limitations. Optimizing CNC router settings for porcelain and sintered materials, along with the right tooling often delivers better results than investing in new equipment.
2. How is cutting ultra-compact material different from cutting quartz?
Ultra-compact materials are harder and more brittle than quartz, making them more prone to edge chipping. Following an ultra-compact material machining guide with material-specific feed rates, RPMs, and entry strategies helps produce cleaner, more consistent cuts.
3. How often should blades be changed when cutting porcelain slabs?
Blades should be replaced more frequently than those used for granite because worn blades increase cutting pressure and the risk of chipping. Setting scheduled replacement intervals based on best practices for blade selection on ultra-compact material helps maintain cut quality and reduce unexpected defects.
4. How much material do shops typically lose to chipping and rework?
Without optimized programming, shops can lose 10 to 20 percent of slab value through rework and unusable offcuts. Focusing on reducing waste in slab fabrication with proper nesting, toolpaths, and entry strategies significantly lowers material loss.
5. Do waterjets chip less than CNC routers on ultra-compact surfaces?
Waterjets reduce cutting pressure but can still cause edge damage if settings are not optimized. The most reliable chip-free cutting techniques often combine a waterjet or scored first pass with a precision CNC finishing pass.
6. What is changing in stone fabrication programming in 2026?
Modern fabrication is shifting toward material-specific programming, AI-assisted nesting, and automated CAM workflows. Adopting 2026 stone fabrication technology helps shops improve consistency, reduce rework, and increase production efficiency.
7. Can mitered edges on ultra-compact countertops be cut without chipping?
Yes, when the program is designed specifically for mitered cuts. Successful ultra-compact countertop fabrication relies on multiple finishing passes, sharp tooling, controlled feed rates, and consistent vacuum support to produce clean 45-degree edges.
